Landscape Rendering to Fire Pit Construction

The Original Rendering:

A few weeks back I posted about this drawing for a pergola design. The idea was to anchor a fire-pit seating area.

This drawing was to give the client an idea on how an anchor structure would look/hold down/define the back side of the area.

firepit rendering

[ A simple rendering for fire pit. ]

This rendering was enough info to go ahead and install the patio, fire pit, and seat walls as part of the large patio behind the house.

Rendering to Construction:

However this was not enough to make a decision on the final pergola design. Also more information would be needed to be shown on a plan/drawing for those involved in the construction of the pergola.

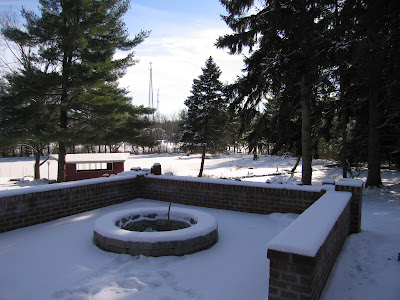

firepit and seating area
From Misc #01

[ The completed area, without the pergola. ]

Take a look at the corners in the seat wall and you’ll notice that the corner columns are a little heftier than the rest of the masonry. They were built to receive the wood columns for the pergola, and act as the anchor for the structure.

Now what:

My next job is to design a pergola that will anchor the end of this structure, hold a few sconce lights, and provide some spatial definition-creating a room-like space.

What I come up with here has to provide all the above and at the same time take nothing away from the view down to the lake.

Okay then . . . . 2 posts, create some depth, and 2 or 3 levels to the overhead wood work. I need to remember to add the sconces for light and ambiance, which were agree on when the clients had reviewed the rendering(s).

This will be a fun little design it allows for some nice creativity in a pergola structure, and at the same time I get to pull a little off of the house structure and add it to the landscape.

This idea of pulling off the architecture of the house has always been a strong design principle for me. It creates strong work.

The unifying of the house and landscape creates strong ties and balance, while allowing for design creativity in just how you pull those structural elements together. this will be more apparent when we all look at my drawings and I’ll post a pic of the cross beam supports on the house.

Advertisements

9 responses to “Landscape Rendering to Fire Pit Construction

  1. Hi Rick,

    What architectural style is the house? Are the beams on the house massive or diminutive.

    It looks like the columns and lintel beam you have in your rendering are larger say 10″ x to 12″ x.

    Will you use cross pieces on the lintel?

    Yes a photo of the house would be nice to see.

    What kind of wood do you see use here

    Regards,

  2. Hello Rick,
    It is always nice to see a peer post progression photographs of their work.
    The brick wall work looks very nicely handcrafted but I can’t see this wall ever being used as a seating wall for a couple of reasons:
    1. It is set too far back away from the source of the fire. Generally speaking 1.5 to 2.5 feet away is about where people naturally sit from the outer ring of a fire pit area, – just enough room to stretch their legs and let their feet settle on the edge of the ring.
    2. The height of the wall looks too high for average comfort.
    Comfort level is somewhere between 16 and 18 inches in height
    3. No back rest. This is not always needed but it sure is a comfortable commodity to have in fire ring rooms.

    I’m also having a feeling of discomfort when looking at the rigid square room set out in this landscape. Perhaps it is the angle of the photograph , but I don’t see how this square connects to the surrounding landscape or how it seamlessly responds to the surrounding landscape architecture or architecture.
    For this reason I would love to see how it connect to the house.

    Looking forward to the next installment on this project.
    Michelle
